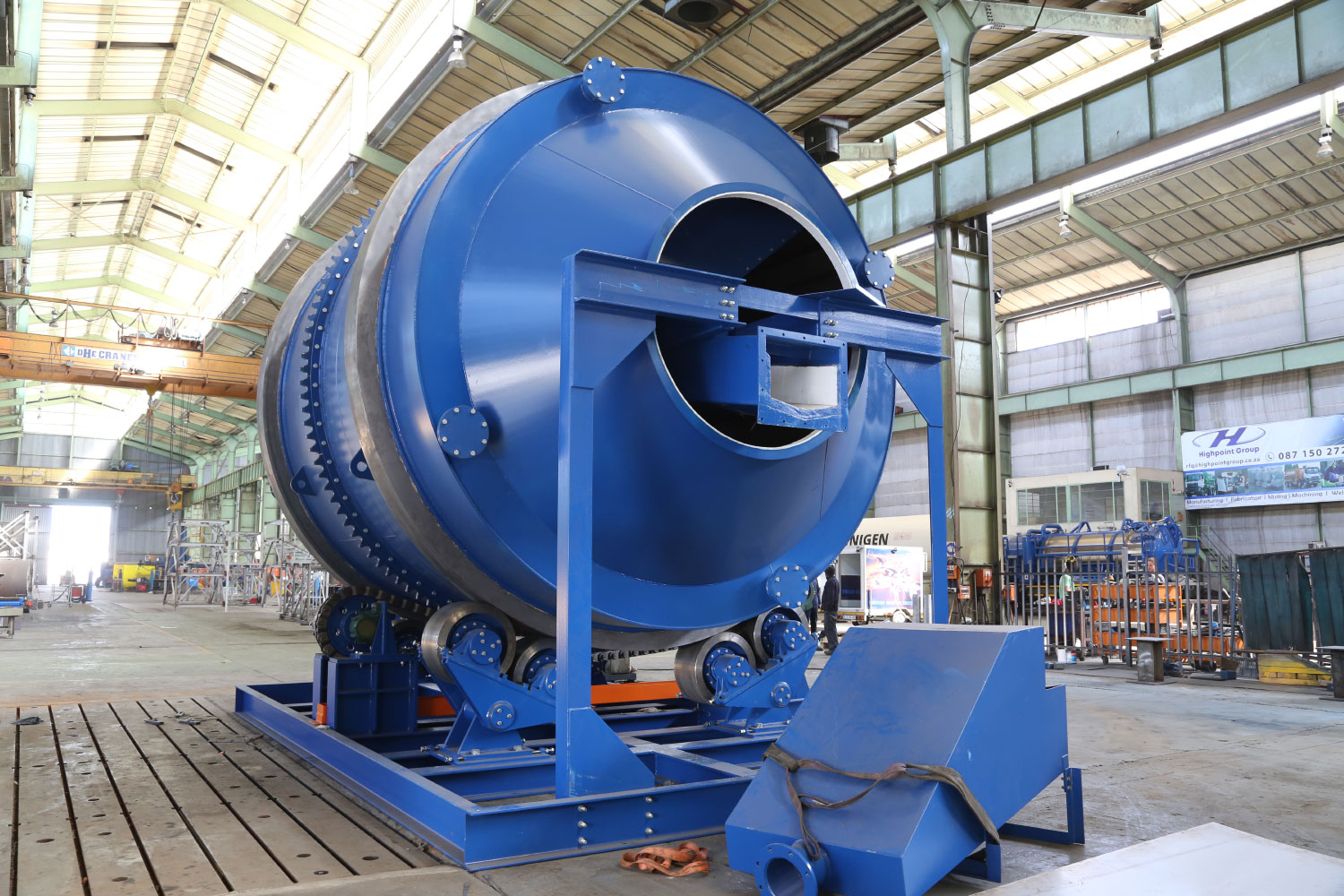

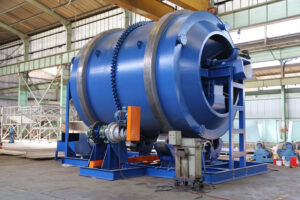

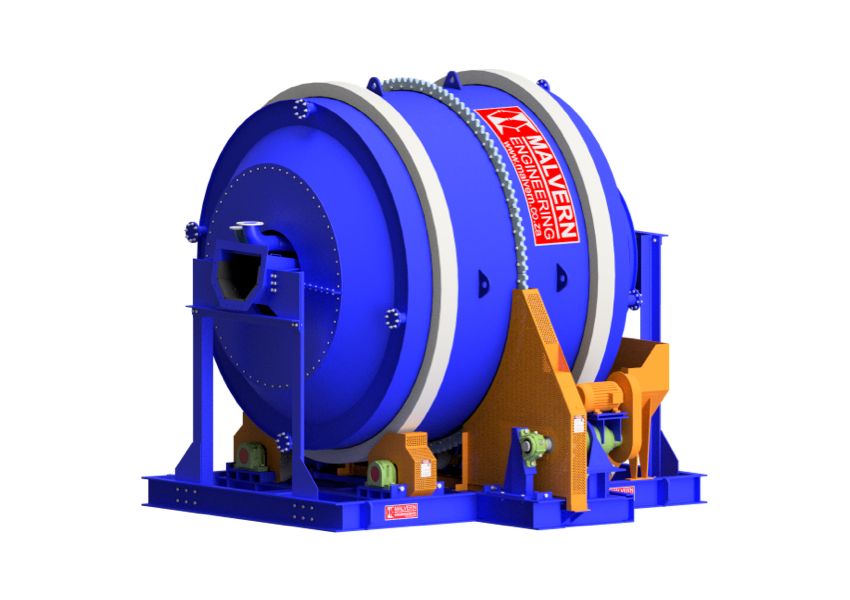

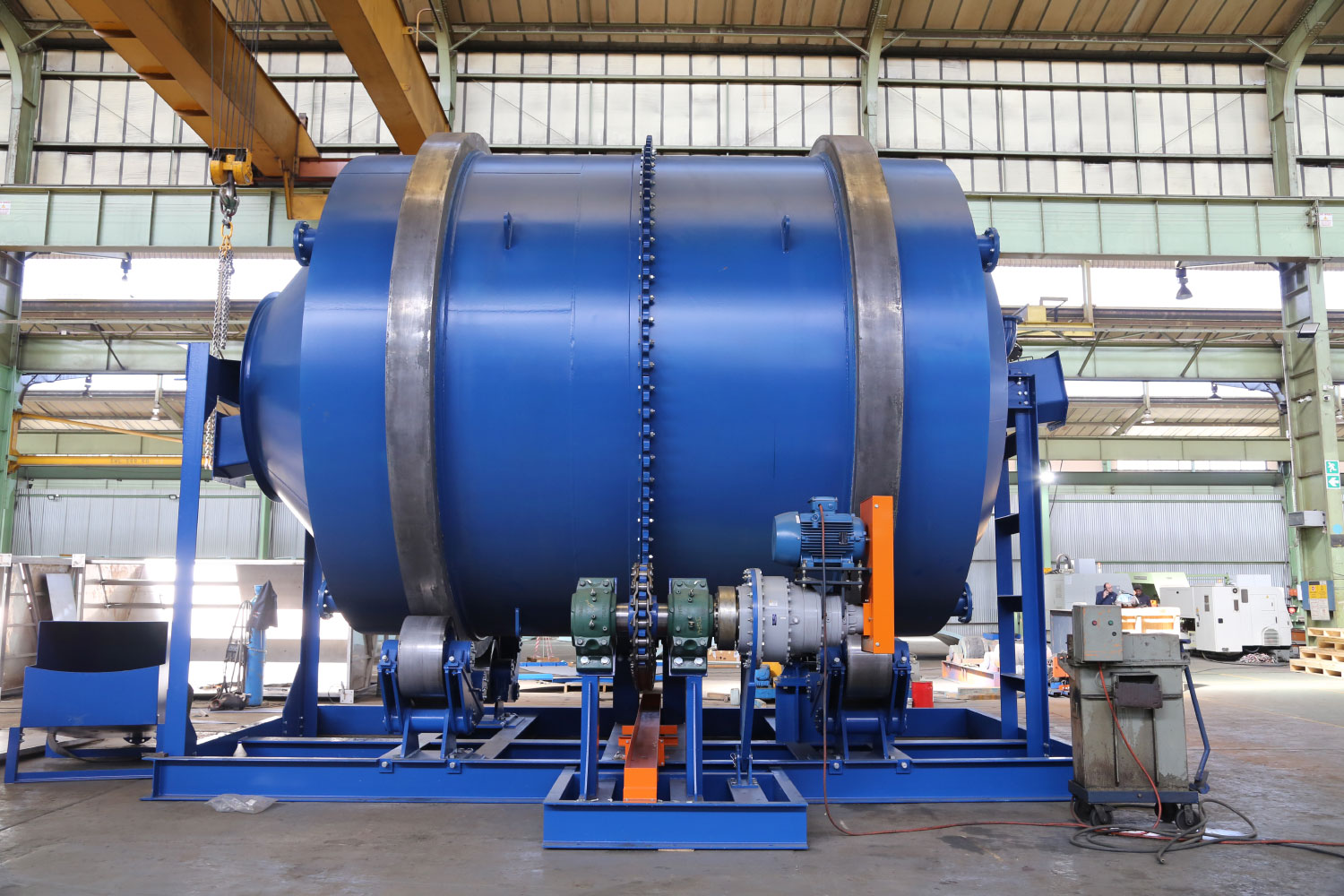

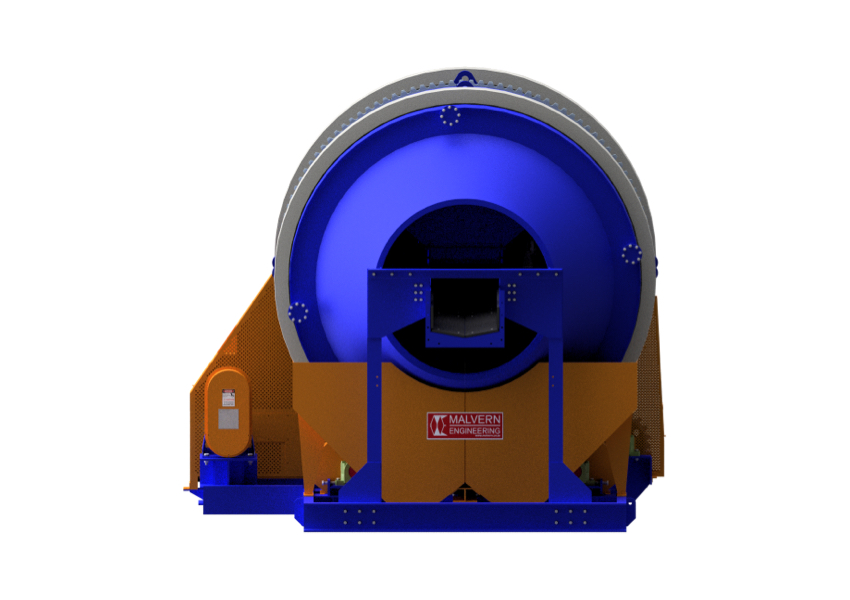

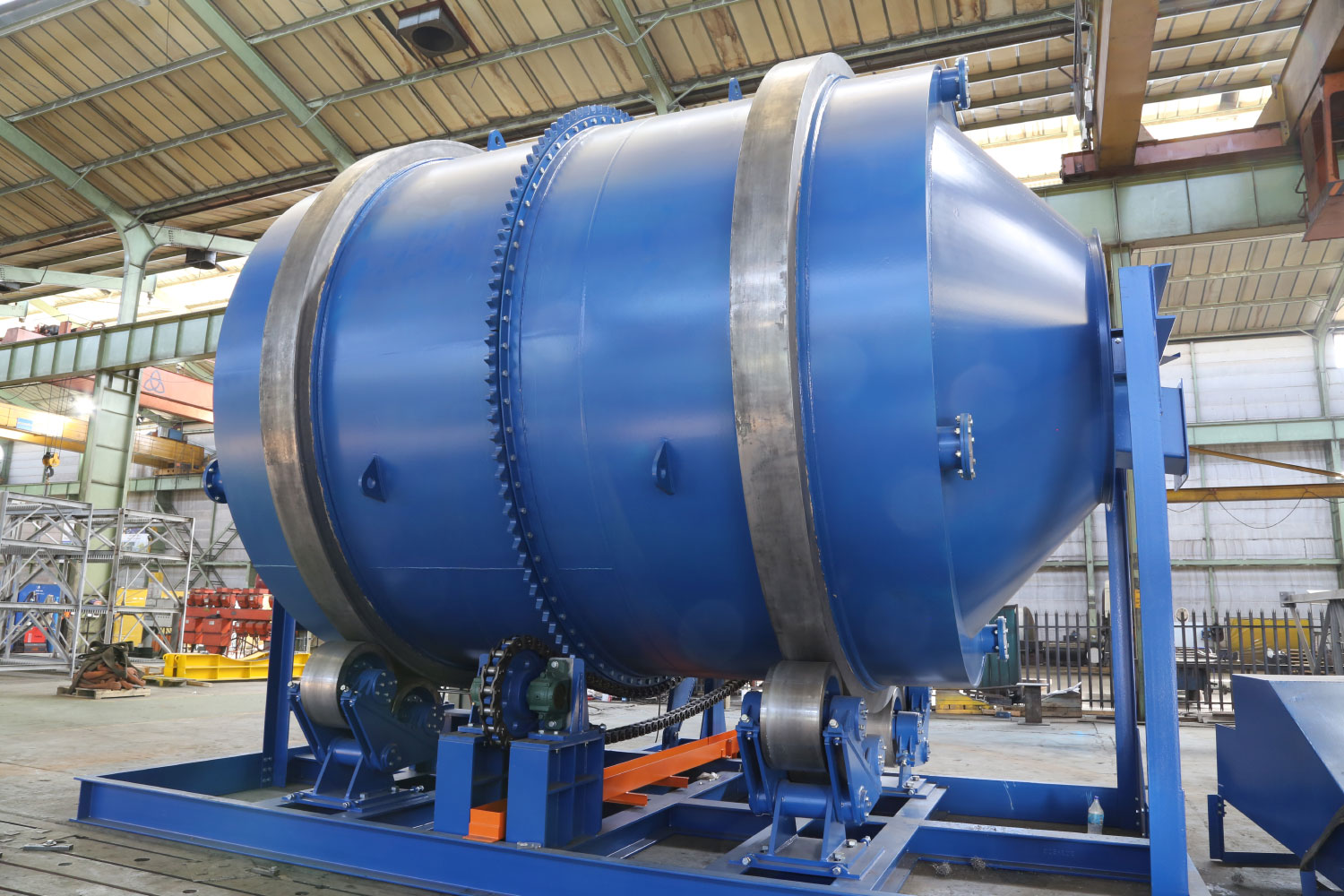

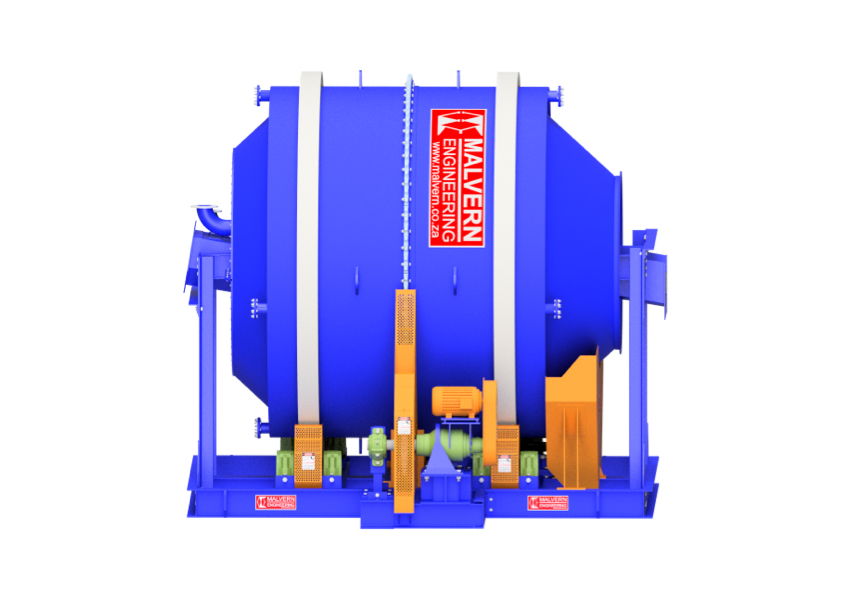

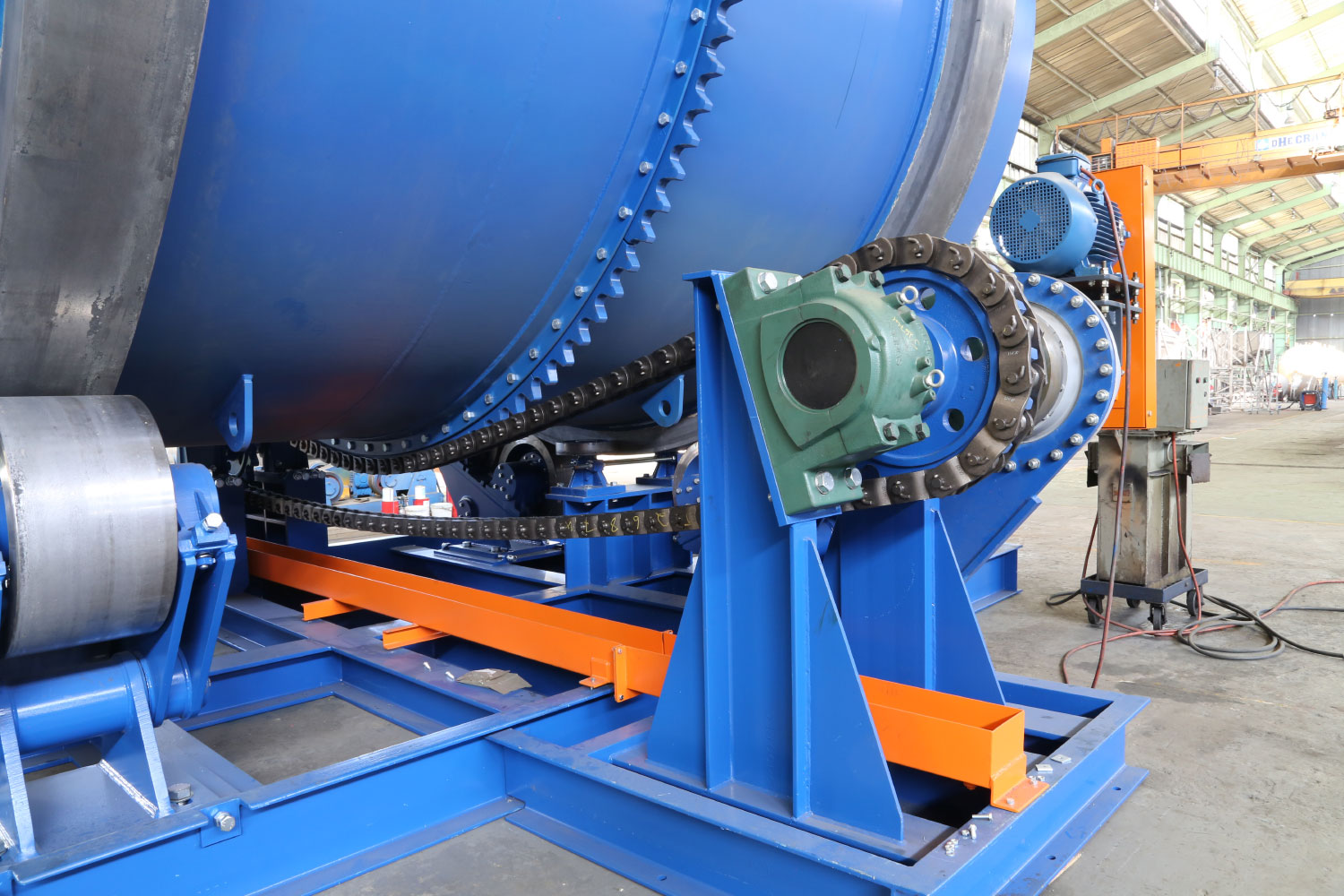

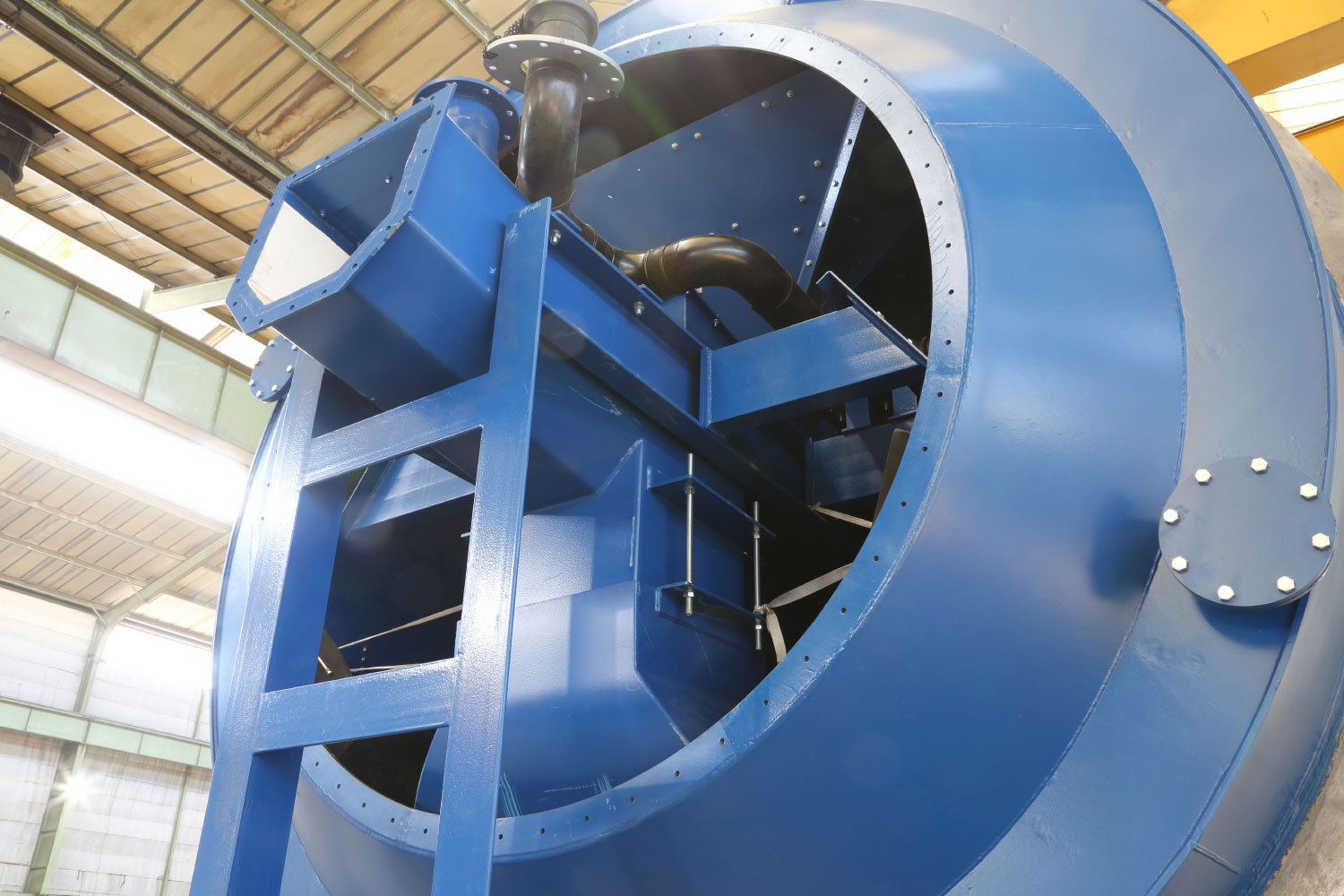

HEAVY MEDIA DRUM

The Malvern Engineering Heavy Media Drum (HMD) is used for heavy media separation of feed materials within a range of 10mm to 300mm particle size.

Industries Served:

  • Iron Ore
  • Coal
  • Lignite
  • Limestone
  • Dolomite
  • Lead
  • Zinc
  • Silver
  • Diamonds
  • Manganese
  • Chrome
  • Phosphate
  • Bauxite

Data Required for Sizing Heavy Media Drum:

  • Feed tonnage
  • Feed particle density
  • Particle size distribution in feed (Top and Bottom size also required)
  • Yield to sink on mass basis in % terms.
  • Sinks Particles density.
  • Sinks Bulk density.
  • Floats density.
  • Washability report (Float / Sinks analysis) of the feed material.

The benefits of a Malvern Engineering Heavy Media Drum Separator:

  • Low installation costs.
  • Minimal Maintenance Costs.
  • High Availability.
  • Maximum Efficiency.
  • Professional Back up.
  • Site Service Support.
  • Spares availability.

Product Brochure

To download the product brochure, click the download button below. You must enter your registered email id while download.

Download Product Brochure
Model Drum diameter Drum length Belt width Magnetic induction density on the surface of drum Ore Particle Capacity Weight
mm mm mm mT mm  t/h t
CTZ50/50 500 600 500 160 – 350 5 50 50 – 80 0.4
CTZ50/65 500 750 650 160 – 350 $ 50 60-110 0.5
CTZ63/65 630 750 650 160 – 400 ≤ 50 70 – 120 0.7
CTZ63/80 630 950 800 180 – 500 ≤ 150 100 – 160 0.9
CTZ80/80 800 950 800 180 – 500 ≤ 150 120 – 200 1.4
CTZ63/100 630 1150 1000 180 – 500 ≤ 150 130 – 180 1.5
CTZ80/100 800 1150 1000 180 – 500 ≤ 150 150-260 1.9
CTZ100/100 100 1150 1000 180 – 500 5 250 180 – 300 2.6
CTZ100/120 100 1400 1200 180 – 500 ≤ 250 200 – 400 3.1
CTZ120/140 120 1600 1400 180 – 500 5 250 250 – 460 4.6
